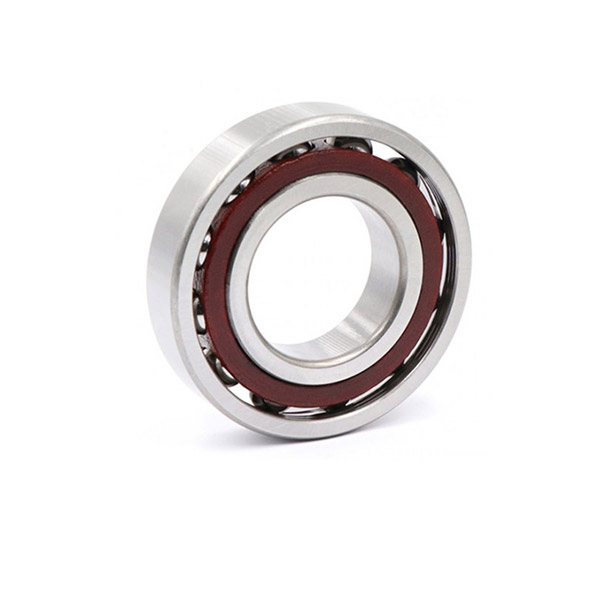

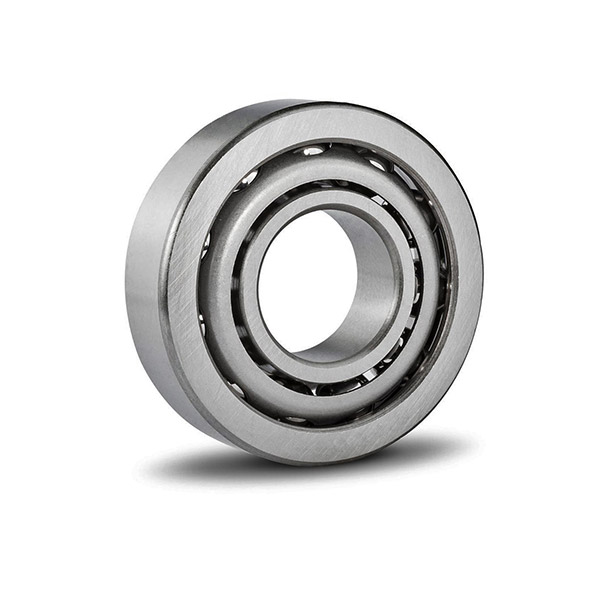

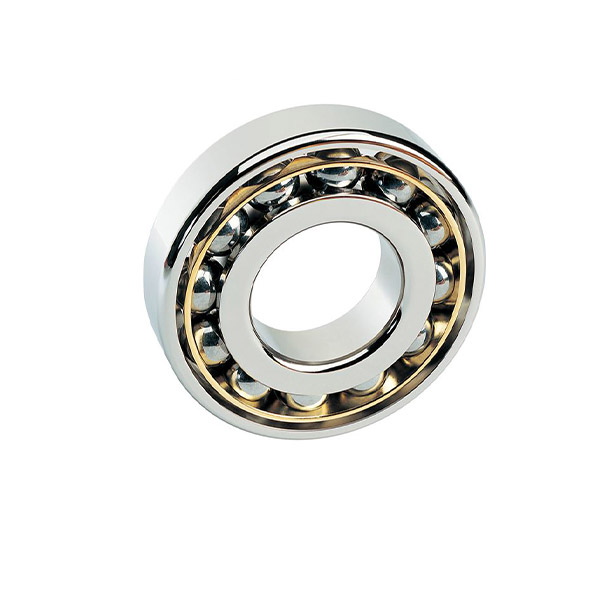

Anqular Contact Ball Bearings are similar to Deep Groove Ball Bearings, however they can sustaincombined radial 8t axial loads, because the line of contact between the Balls 8t Raceway is at an angle inthe radial plane.
There are three standard contact angle classifications for Single Row Angular Contact Ball Bearings. Thesehave been explained under " Design and Features of Rolling Contact Bearings" section of this handbook.
Single Row Anqular Contact Ball Bearings can also be used as a combination of two or more units asBack-to-Back (BTB), Face-to-Face (FTF) or Tandem (TD) configurations.
capable of carrying both axial and radial loads
suitable for low, medium 8t high speed applications
open basic design type Single and Double Row Angular Contact Ball Bearings
as Sealed types
with Snap Ring groove
with Snap Ring groove and Snap Ring
standard precision grade (lS0 Grade 0 -ABEC1) for Single and Double Row Angular ContactBall Bearings
standard as well as higher grade (Ps 8t P4) for Single Row Angular Contact Ball Bearingsused in combination
pressed Steel, Nylon Fiber and Brass Cage
Rolling Contact Bearings can be categorized in many ways. One is based on the end use of Bearing e.g, Agricultural, Automotive, Industral ete. However, considering technical parameters & construction, there are two ways to classify Rolling Contact Bearings.
